Live Streaming

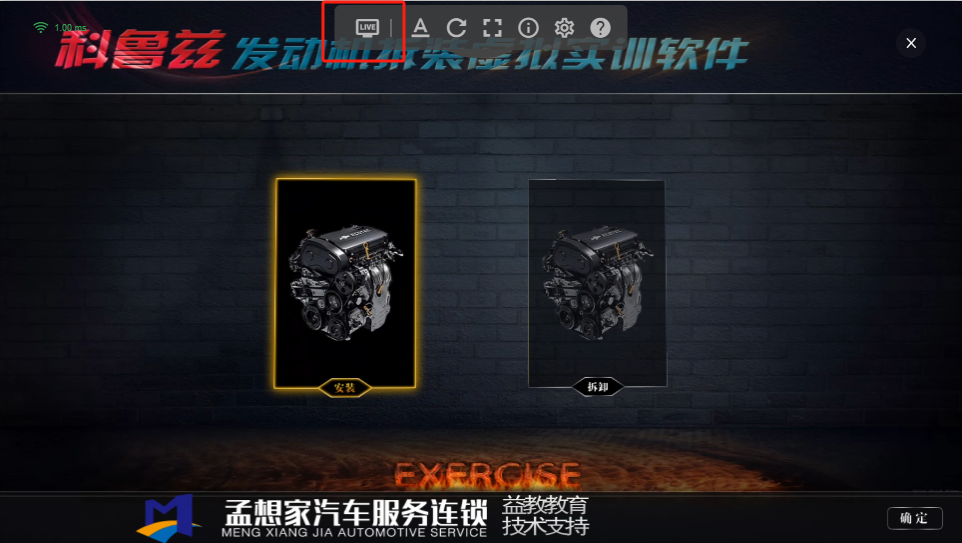

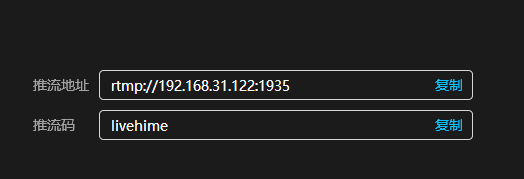

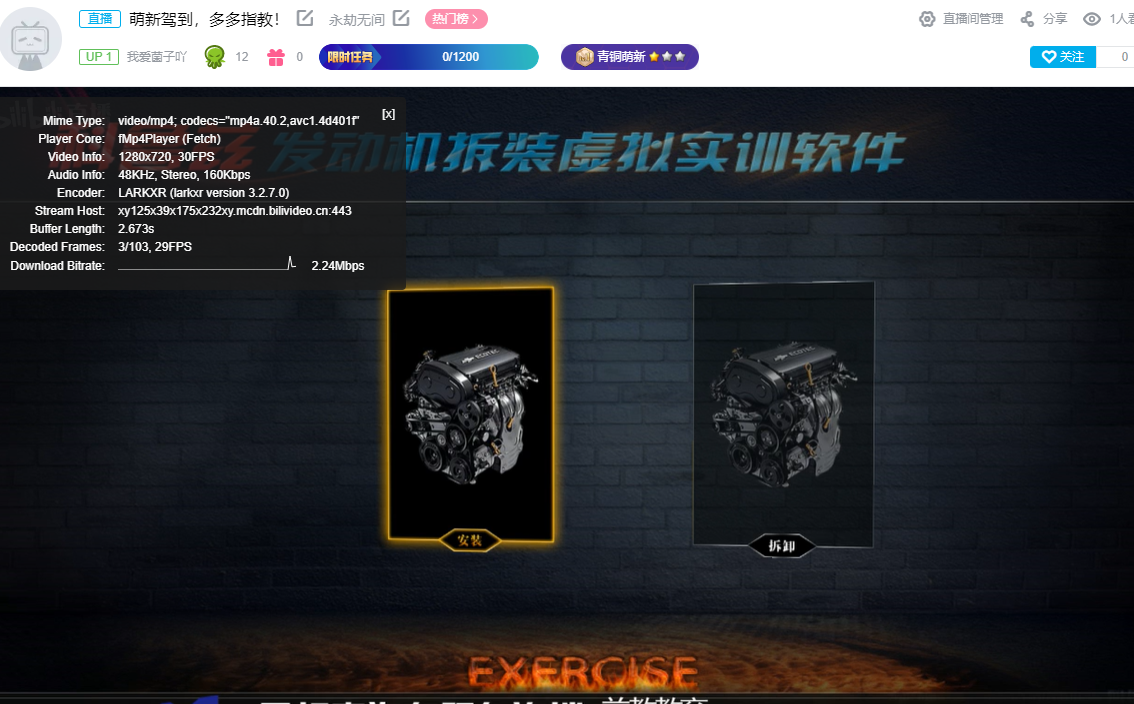

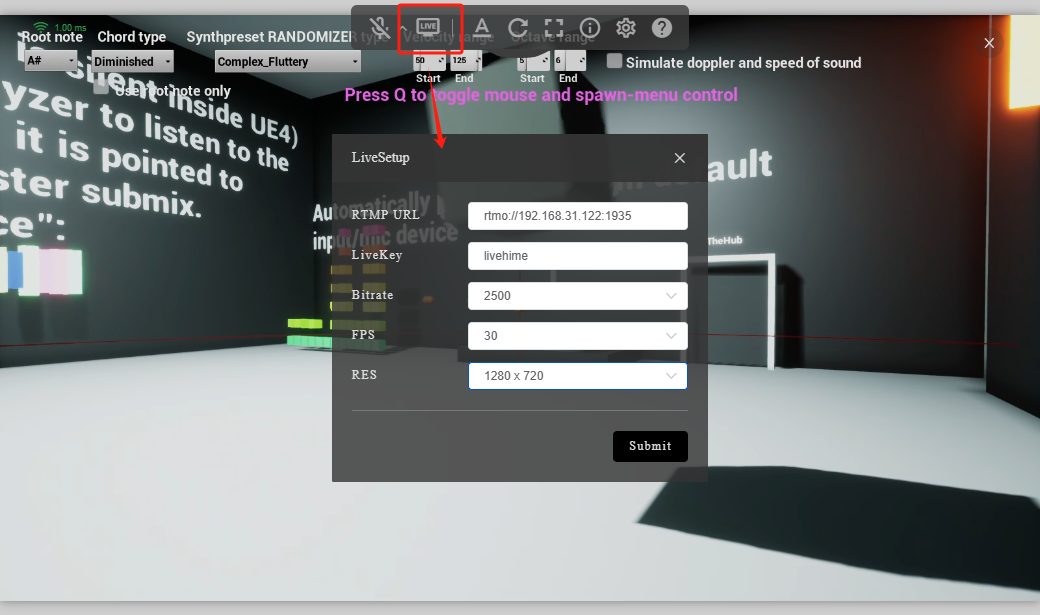

LarkXR supports side-by-side live streaming, synchronizing the application's rendered output to an external live stream (e.g., Bilibili). ## Prerequisites - Apply for a live streaming authorization code from the developer platform or contact Pingxing Cloud Business. ## Step 1: Enable Live Streaming in the Application 1. Log in to the management backend at `http://<server-IP>:8182`. 2. Locate the application and enter edit mode. 3. Under **Advanced Settings**, enable **Side-by-Side Live Streaming**. ## Step 2: Set the Stream Destination 1. On the client frontend, click the **LIVE** icon in the menu bar. 2. Enter the live stream push URL (e.g., your Bilibili RTMP address) in the input box. 3. Click **OK** and wait for the success confirmation. ## Step 3: Verify Visit the live stream address to confirm the application content is streaming correctly.
